Refurbished Walter Helitronic Basic-F Tool Grinding
Refurbished Walter Helitronic Basic-F Tool Grinding
Contact us for price
Location:Thailand
or
Call +65 68425655
Description

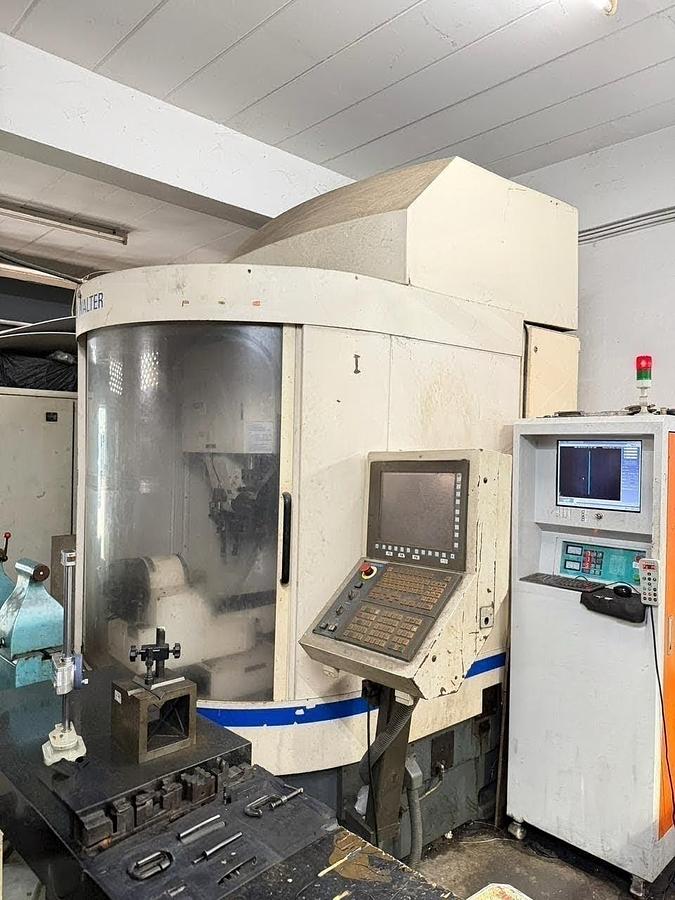

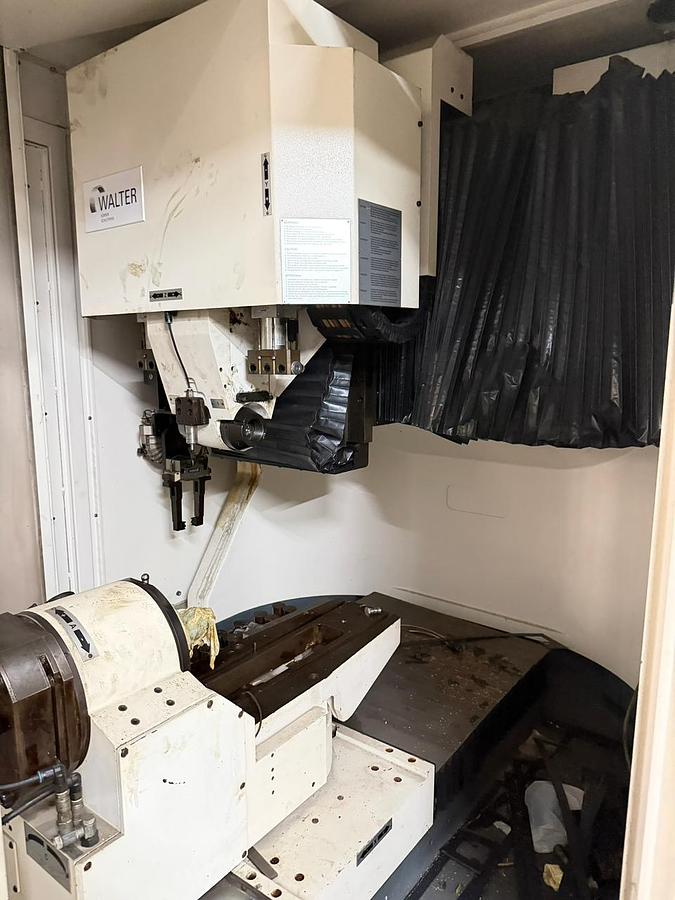

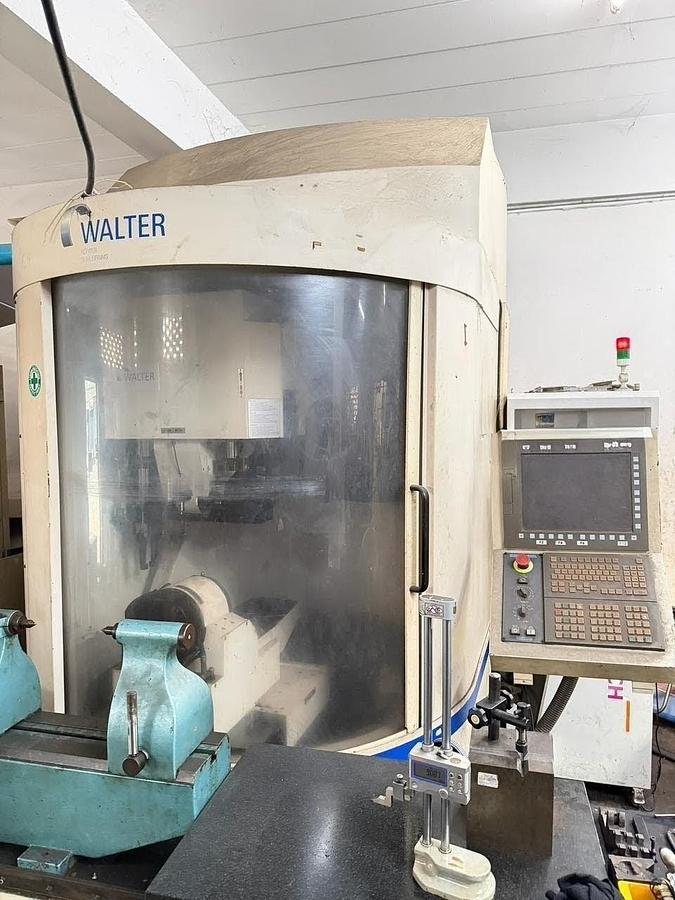

*Machine photo is before refurbished.
Machine sold at “as it, where is” condition.
All information regarding machine tool specification is correct to the best of our ability and knowledge, but we cannot guarantee 100% accuracy. Please clarify & inspect the machine before committing to a sale.
Specifications

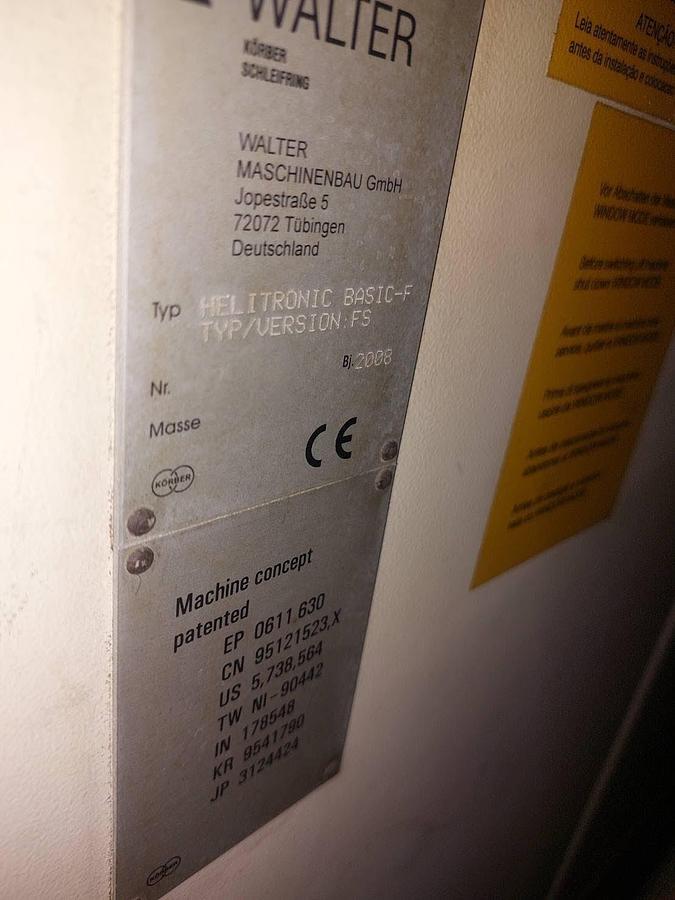

| Manufacturer | Walter |
| Model | Helitronic Basic-F |
| Year | 2008 |
| Condition | Used |
| Stock Number | OT202181 |
| Control | Fanuc 310i |
| X/Y/Z Axis Travel | 460 / 320 / 660 mm |
| C-Axis (Swivel Range) | ±200° |
| A-Axis (Workhead) | Infinite (360°) |
| Linear / Radial Resolution | 0.0001 mm / 0.0001° |
| Max. Diameter (Full Machining) | 240 mm (9.4") |
| Max. Diameter (Profile Tools) | 320 mm (12.6") |
| Min. Diameter | 3 mm (0.12") |
| Max. Length (Peripheral Grinding) | 350 mm (13.8") |
| Max. Length (End Face Grinding) | 280 mm (11.0") |
| Max. Length (Full Machining) | 255 mm (10.0") |
| Workhead Taper | ISO 50 |
| Max Spindle Speed | 9,500 RPM |
| Max. Wheel Diameter | 150 mm (6") |
| Spindle Diameter | 70 mm (2.75") |
| Electrical | 400V / 50 Hz (3-phase) , 20KVA |
| Machine Weight (Approx) | 4,500 Kg |
| Machine Dimension (LxWxH) | 2,570 x 2,930 x 2,280 mm |
