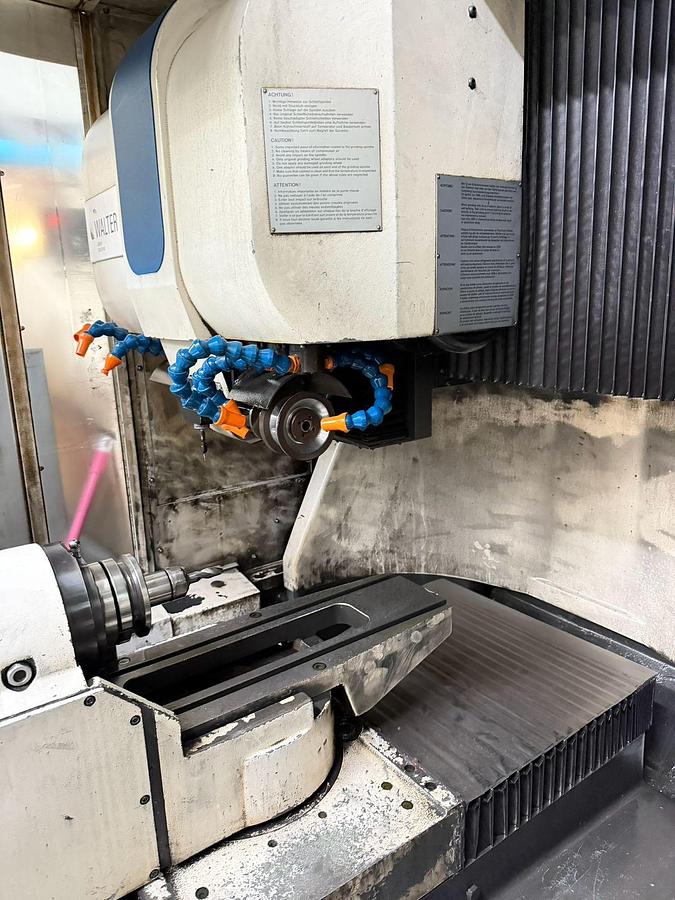

Used Walter Mini Power 5 Axis Tool Grinder
Used Walter Mini Power 5 Axis Tool Grinder
Contact us for price
Location:Thailand
or
Call +65 68425655
Description
Machine sold at “as it, where is” condition.
All information regarding machine tool specification is correct to the best of our ability and knowledge, but we cannot guarantee 100% accuracy. Please clarify & inspect the machine before committing to a sale.
Specifications

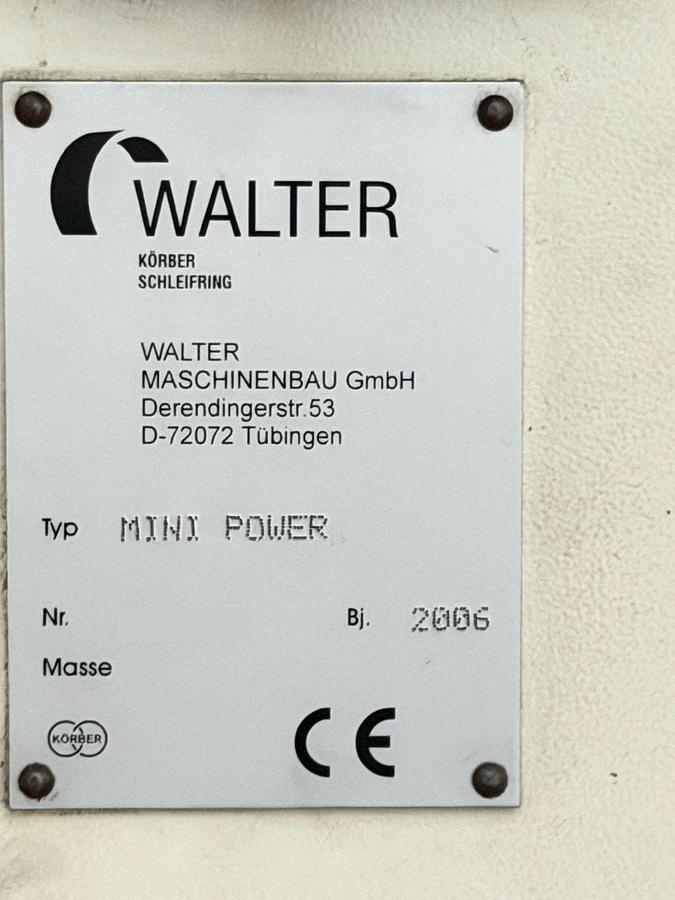

| Manufacturer | Walter |
| Model | Mini Power |
| Year | 2006 |
| Condition | Used |
| Stock Number | OT202180 |

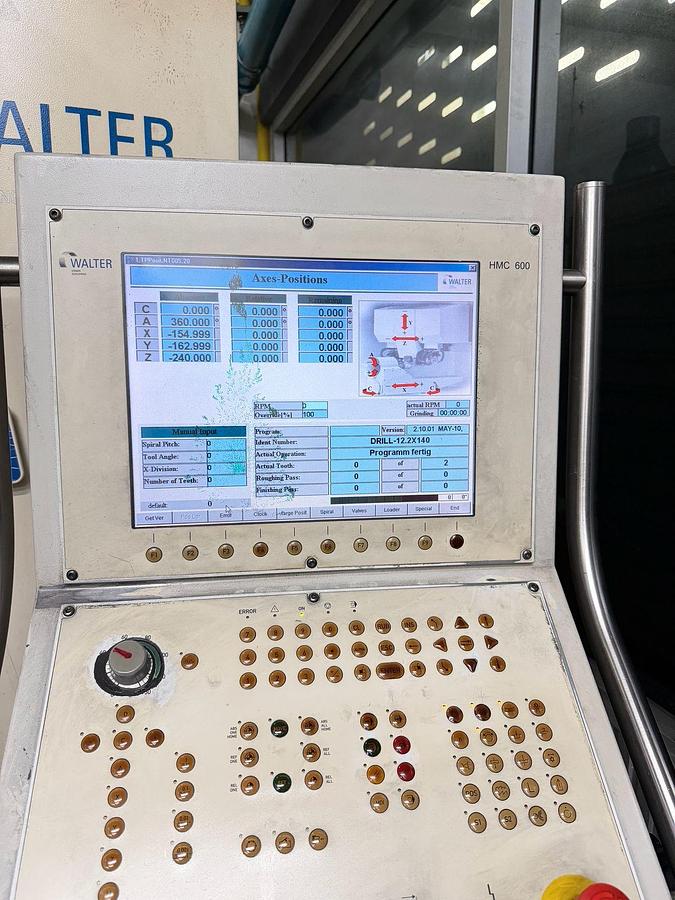

| Control | Walter HMC 600 |
| Resolution | 0.0001 mm (Linear) , 0.0001 Degrees (Rotary) |
| X/Y/Z Axis Travel | 350 / 200 / 470 mm |
| C-Axis | Swivels ±200° [ Rotary Table] |
| A-Axis | Infinite rotation [Workhead] |
| Max Diameter (New Grind) | 1-12.7 mm |
| Max Diameter (Regrind) | 100mm |
| Max Length (Peripheral) | 255-270mm |
| Max Length (End Face) | 150-185mm |
| Max workpiece weight | 30 Kg |
| Spindle Type | Double-ended, belt driven |
| Spindle Speed | 0-9,500 RPM |
| Max Wheel Diameter | 150mm |
| Number of Wheels | Up to 6 Wheels mounted on two ends |
| Electrical | 400V / 50Hz / 25 kVA |
| CE Mark | Yes |
| Machine Weight (Approx) | 3,600 Kg |
| Machine Dimension (LxWxH) | 2,800 x 2,700 x 1,900 mm |
