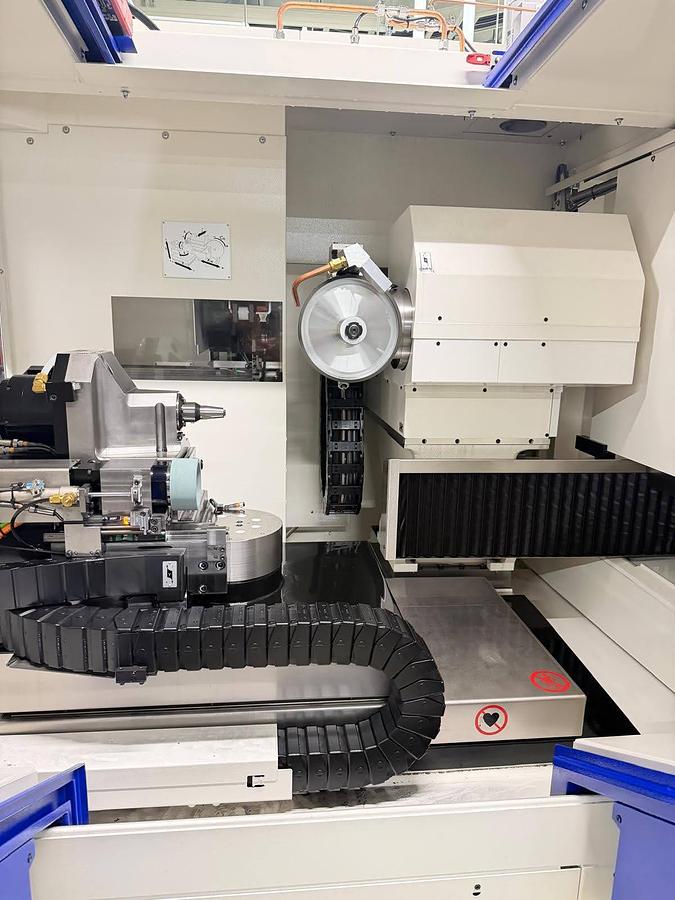

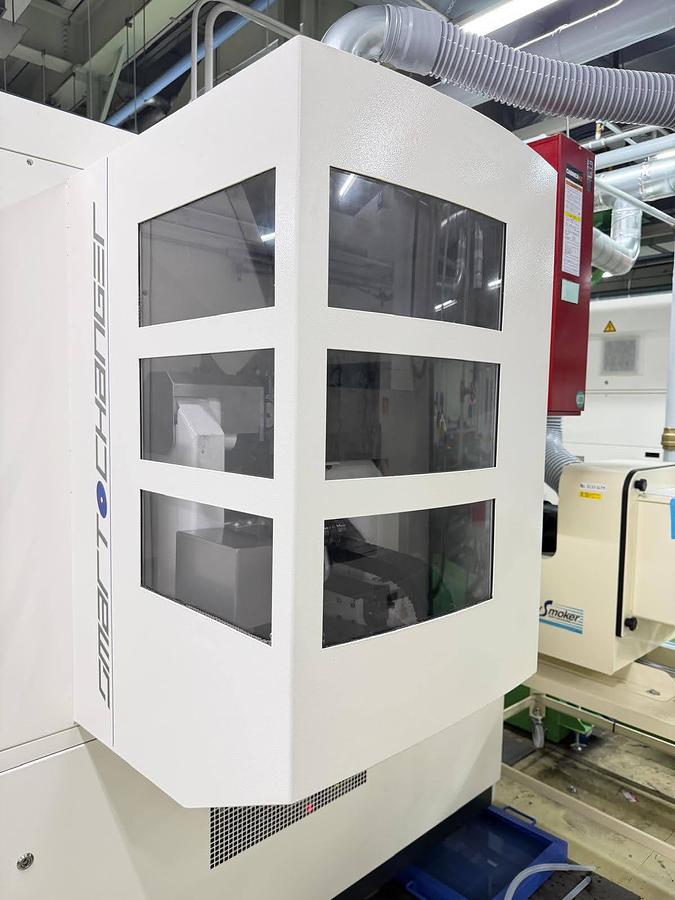

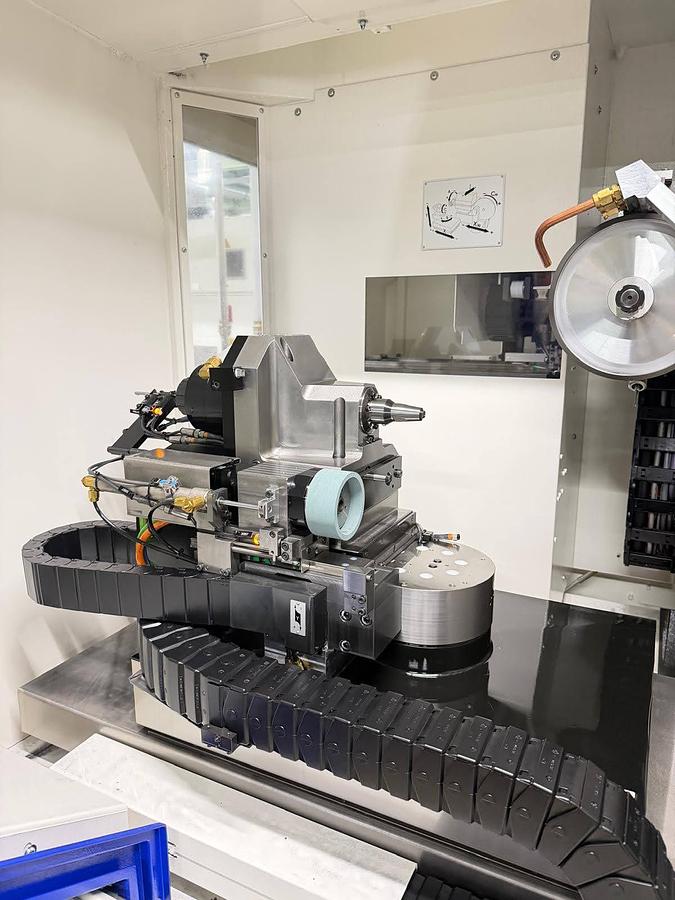

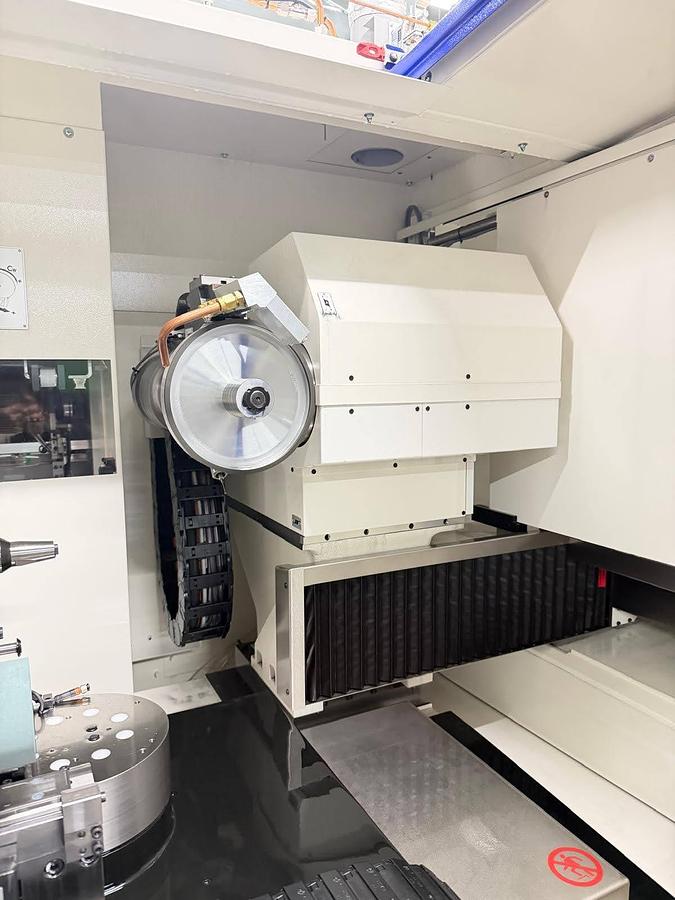

USED ROLLOMATIC 630XW Tool Grinder
Featured
USED ROLLOMATIC 630XW Tool Grinder
Contact us for price
Location:
or
Call +65 68425655
Description
Machine sold at “as it, where is” condition.
All information regarding machine tool specification is correct to the best of our ability and knowledge, but we cannot guarantee 100% accuracy. Please clarify & inspect the machine before committing to a sale.
Specifications
| Manufacturer | ROLLOMATIC |
| Model | 630XW |
| Year | 2023 |
| Condition | Used |
| Stock Number | 8815657 |
| Grinding Range | 0.1-20.0mm (0.004"-0.75") |
| Controller | Fanuc 30iMB |
| X/Y/Z Axis Travel | 300 / 220 / 180mm , Absolute linear scale, Resolution 0.00001 mm (.0000004") |
| A axis | -50° to 90° (140°), Rotary measuring encoder, Resolution 0.0000125° |
| B Axis | -75° to 135° (210°), direct drive, Rotary measuring encoder, Resolution 0.00005° |
| C Axis | Tool rotation, 300 / 1000 r.p.m, Rotary: on AC motor/ measuring encoder, Resolution 0.0001° |
| Power | 11 kW (15 HP), direct drive |
| Peak Power | 14 kW (19 HP) |
| Rotation speed | 500 - 12000 RPM |
| Grinding wheels | 200mm (7.9") |
| Wheel attachment | HSK50E |
| Number of tools | up to 1360 (6 cassettes) |
| Total power | Max 18kW, 3 x 400V/25A |
| Machine Dimension (LxWxH) | 2180 x 2240 x 2200 mm |
| Approx net weight | 3,500 Kg |
