Sold

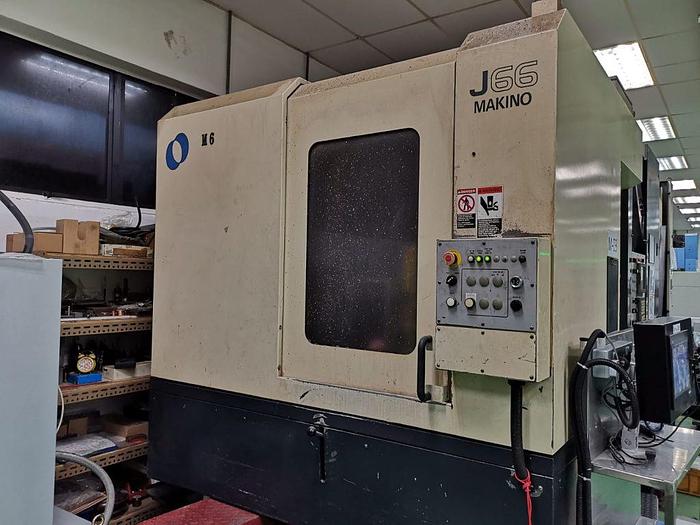

Used MAKINO J66 Horizontal Machine Center
Location:Singapore
Description
2 Pallet with tapped holes Pallet changer 8-nozzle coolant supply device Overhead shower coolant system Through-spindle coolant Center trough coolant Lift-up chip conveyor - Machine sold at “as it, where is” condition. - All information regarding machine tool specification is correct to the best of our ability and knowledge, but we cannot guarantee 100% accuracy. Please clarify & inspect the machine before committing to a sale.
Specifications
| Manufacturer | MAKINO |
| Model | J66 |
| Year | 2000 |
| Condition | Used |
| Stock Number | 1904057 |
| Controller | FANUC PROFESSIONAL 3 |
| Pallet Size | 400 x 400 mm |
| Pallet Indexing Angle | 1° NC indexing |
| X/Y/Z Axis Travel | 720 / 560 / 500 mm |
| Spindle Speed | 16,000 RPM |
| Max Load | 400 KG |
| ATC | 32 |
| Spindle Taper | HSK-A63 |
| Spindle Motor Power | 15 kW / 11 kW |
| Machine Dimension (LxWxH) | 2570 x 5300 x 3060 mm |
| Machine Weight (Approx) | 10,000 Kg |
| Country of Origin | JAPAN |
